DIGITAL VOLTETER
Location：
Name of produc：DP-T60 Single-phase AC Volmeter
Category Digital Voltmeters > DP-T XX
Model DP-T60 Single-phase AC Volmeter
Technical Data
Accuracy: Voltage Accuracy class 1
Parameters:
Rated voltage: 300V AC, 500V AC
Voltage overload: 1.2 times (Keep)
Resistance: Voltage≥1kΩ/V
Frequency: 45-65Hz
Auxiliary Power supply: AC100~300V、AC 200~500V、AC 380V、AC 220V
Display Features: High-brightness LED display
Operating Environment:
Operating temperature:-10℃~+55℃
Storage temperature:-25℃~+70℃
Relative humidity:≤93%，Non corrosive gas sites
Safety Performance:
Insulation resistance:＞100MΩ
AC Withstand Voltage:＞AC 2000V

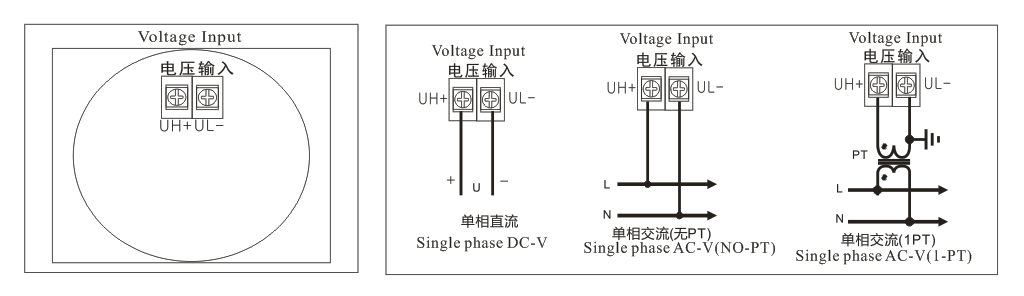

Signal Wiring Diagram:
