Name of produc：DP-96-4 A.C. voltmeter
Category Digital Voltmeters > DP-XX-4
Model DP-96 Single-phase AC Volmeter
Technical Data
Accuracy: Voltage Accuracy class 0.5.
Parameters: Rated voltage: AC 57.7V、AC 100V、AC 220V、AC 380V.
Voltage overload: 1.2 times (Continuous)2times/1second.
Internal resistance: Voltage≥1kΩ/V.
Frequency: 45-65Hz.
Auxiliary Power supply: AC/DC 48-240V、AC/DC 80-265V、AC 380V、AC 220V、AC 110V、AC 60V.
Display Features:
High brightness LED display.
Display full range 1-9999 arbitrary variable settings.
Display “HHHH”,when data over 1.4 times the full range.
Operating Environment:
Operating temperature:-10℃~+55℃.
Storage temperature:-25℃~+70℃.
Relative humidity:≤93%，Non corrosive gas sites.
Safety performance:
Insulation resistance:＞500MΩ.
AC Withstand Voltage:＞AC 2000V.

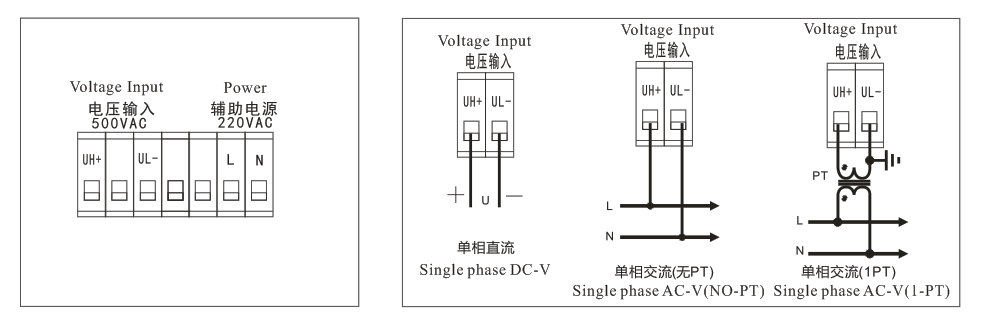

Signal Wiring Diagram:
